|    MICA COVERED / INSULATED / WRAPPED COPPER & ALUMINIUM WIRES / STRIPS / CONDUCTORS    |

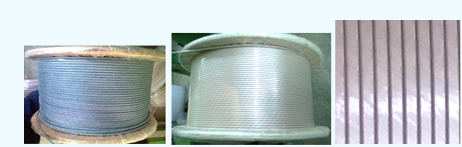

MICA COVER ROUND & RECTANGULAR /FLAT COPPER & ALUMINIUM WIRE


Mica paper in MICA COVER ROUND & RECTANGULAR /FLAT COPPER & ALUMINIUM WIRE consists of  tiny platelets of mica that are made into a paper. This paper is extremely fragile and requires a carrier to render it usable, hence the polyester film. With respect to corona & thermal resistance requirements, Mica has shown itself to be the most suitable insulating material.

Its application is mainly in high voltage rotating machines due to its superior resistance to corona and it is therefore obvious to use it also as conductor insulation in inverter driven motors.

Manufacturing Range & Specification
Temp. Class Type of Insulation Size Range
200oC Epoxy /Glass Mica

Round Wire: 2 to 4 mm
Flat Wire: 6 - 50 sq. mm
Min. Size: 3 x 2 mm
Max. Size: 12.5 x 4 mm





BARE / INSULATED COPPER & ALUMINIUM WIRES

All  our  products  are manufactured  as per International  Standards and Specifications given  by  the customer .We offer a  selection  of  dimensions,  types of  covering  and materials  for  special  fields  of application.

We use  latest  technology  to  manufacture our products. Wires & Strips are manufactured  by continuous extrusion  machine which ensures bright annealed material free from any dust or surface defect which is most suitable for further insulation.
