   |FIBREGLASS COVERED COPPER WIRE|

FIBRE GLASS COVERED ALUMINIUM WIRE

|FIBRE GLASS INSULATED COPPER WIRE

|FIBREGLASS INSULATED ALUMINIUM WIRE|

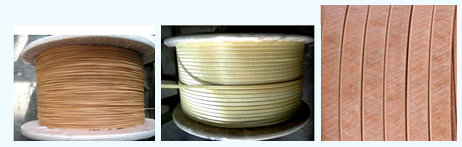

FIBREGLASS /DAGLASS COVERED ROUND & FLAT COPPER & ALUMINIUM WIRE


The Glass in FIBRE GLASS /DAGLAS COVERED /INSULATED ROUND & RECTANGULAR /FLAT COPPER & ALUMINIUM WIRE may be applied in woven tape form or as a continuous fibre. It has proved to be an efficient insulation providing coil winders with higher thermal stability, adequate electrical properties and good resistance to abrasion after varnishing. The glass is bonded with a varnish for dielectric strength to improve mechanical properties.

FibreGlass /Daglass lapped conductors (bare or enamelled) are very suitable for windings of electric motor stators, generators, special transformers and high  voltage motors. In general this insulation  can be applied where high mechanical strength and high insulation properties are required. It exhibits a very high degree of mechanical  and  thermal  stability.

Manufacturing Range & Specification
Temp. Class Type of Insulation Size Range Specification
F, 155oC Single /Double Layer of Glass Fibre Yarn & Impregnated with Class F / H / C Varnish Round Wire: 1-5 mm
Flat Wire Size:
Min. Size: 3 x 2 mm
Max. Size: 25 x 6 mm
IEC-60317-31
IS-13730-31
H, 180oC IEC-60317-32
IS-13730-32
C, 200oC IEC-60317-33
IS-13730-33
NEMA MW 41 & 43,50




BARE / INSULATED COPPER & ALUMINIUM WIRES

All  our  products  are manufactured  as per International  Standards and Specifications given  by  the customer .We offer a  selection  of  dimensions,  types of  covering  and materials  for  special  fields  of application.

We use  latest  technology  to  manufacture our products. Wires & Strips are manufactured  by continuous extrusion  machine which ensures bright annealed material free from any dust or surface defect which is most suitable for further insulation.
